The Smartphone Module is designed to inspect electrical equipment, troubleshooting HVAC problems. Equipped with functional thermal App for smartphone, the Smartphone Module enables you to get the thermal imaging on your phone.
Features
- Thermal resolution: 160 × 120 (19 200 pixels)
- NETD: < 40 mK (@ 25 °C, F#=1.0)
- Accuracy: Max (±2°C/3.6°F, ±2%), applicable 60 sec after start-up when the ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- USB Type-C Interface (Android)
- 26 g Weight
Specifications
- Thermal Module
- Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
- IR Resolution 160 × 120 (19 200 pixels)
- Pixel Pitch 17 μm
- Spectrum Range 8 – 14 μm
- NETD < 40 mK (@ 25 °C, F#=1.0)
- Focal Length 3.2 mm
- FOV (Field of View) 50° × 38° (H × V)
- Minimum Focus Distance 20 cm
- Focus Fixed
- Image Frequency 25 Hz
- Aperture F1.1
- Thermography Function
- Accuracy: Max (±2°C/3.6°F, ±2%), applicable 60 sec after start-up when the ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Object Temperature Range: -20 °C to 350 °C(-4°F to 662°F )
- Shutter: Automatic/Manual
- General
- Power: Powered by Smartphone
- Phone: Android (USB Type-C Interface)
- Working Temperature Range: 15 °C to 35 °C (59°F to 95°F )
- Storage Temperature Range: -20 °C to 60 °C (-4°F to 140°F )
- Protection Level: IP40
- Mechanical Shock: Drop from 1 m (3.28 ft )
- Weight: 26 g (0.057 lb)

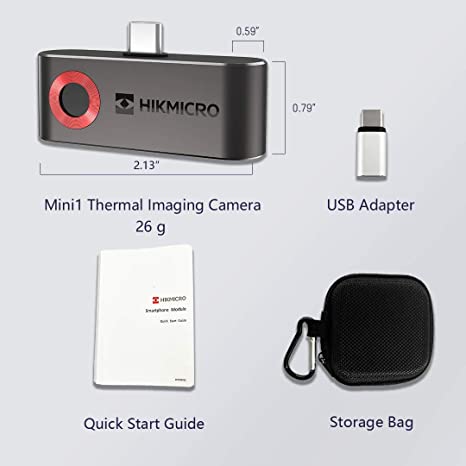

- Dimension: 54.1 mm × 15 mm × 27.5 mm (2.13″ × 0.59″ × 1.08″)
- Power Consumption: 300mW
- APP
- Measurement Presets: Hot Spot, Cold Spot, Center Spot, 1 Point Preset, 1 Area Preset, Off
- Color Palettes: Black Hot, White Hot, Red Hot, Rainbow, Ironbow, Fusion, Rain
- Video Format: MP4
- Image Format: JPEG
